Plate Coil

Heating or cooling efficiency is double that of pipe.

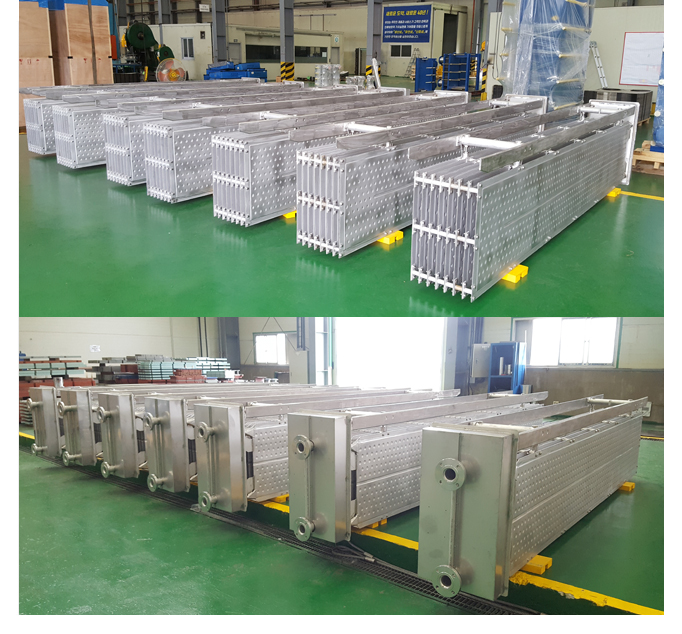

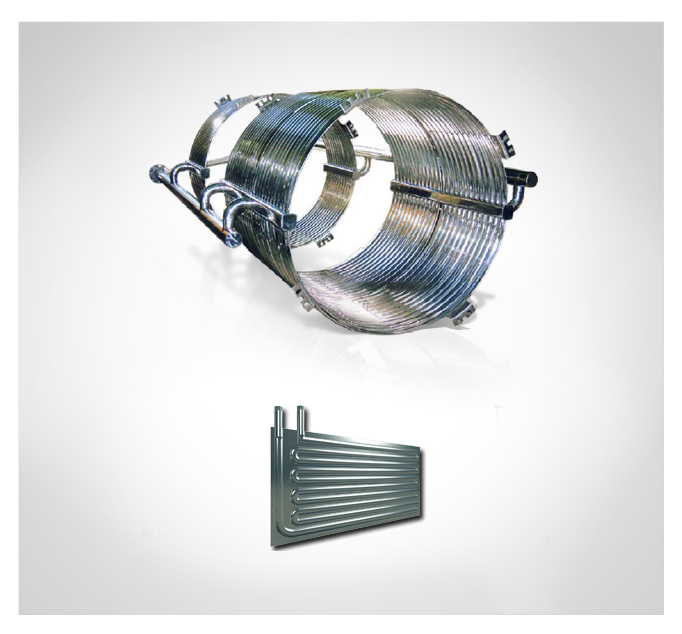

Plate coil is a heat exchanger that keeps the temperature inside and outside of the tank, reactor, vessel and treatment chamber, and so on.
This is composed of embossed and a normal plates or two embossed plates which are welded together.
There are paths in between plates for working liquids.


(1) Easy installation for simple structure : Easy attachment in tanks, for easy increase and decrease of capacity.
(2) More convenient than pipes in installation and application.
(3) Superior efficiency than pipe for heating and cooling. (2 times)
(4) Convenient scale removal.
(5) Easy assembly and disassembly (in joining with union type).


Max. Operating Temperature 400℃
Max. Operating Pressure 12kg/㎠
Plate Material SUS304, 304L, 316, 316L, AVESTA, 254SMO, HASTELLOY-B, C, Titanium


Chemical, machine, ED coating, ink, rubber, petroleum, metal coating, cryogenic container, paper, resin, textile and food industry
