MVR(Mechanical Vapor Recompression Distiller)

Contribution to Human Society with our Efficient Distiller System

Desalination and Distiller System

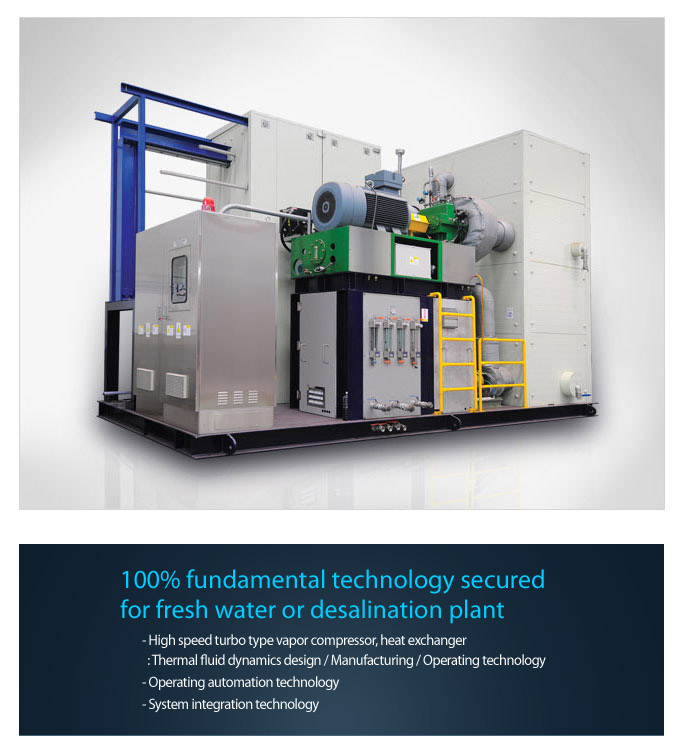

Turbo - Mechanical Vapor Recompressions Distiller

MVR Distiller Application

  • Distillation of sea water, brackish water, infected underground water, malignant waste water through a very effective heat pump system using turbo mechanical vapor recompression method for production of high purity water for drinking and industrial reuse.

  • Appropriate for island region with drinking water insufficiency, inland region with underground water contamination and facilities creating malignant waste water .

Features of Turbo Mechanical Vapor Recompression System

  • Simple design and constituents, only electric power source needed for operation - no heat sources

  • World Best Efficiency (Low specific energy consumption, C.O.P > 20)

  • Easy maintenance due to a compact MVR system with high speed turbo steam compressor

  • Simple and reliable automation system without special crew training for operation

  • Easy full access to heat transfer surfaces and steam compressor for after service

  • Simple raw water pre-treatment, selectable H/X materials ( sea water : Titanium, muddy river & underground water : STS316L, STS304 )

Drinking Water Distiller System

Turbo-MVR Distiller system converting sea /dirty/infected/muddy water into clean drinking water.

  • Can be applied to any type of water : sea water, saline water, contaminated & infected ground/underground water, muddy water, etc.

  • No level of cleanliness of raw water required

  • No need for pre & post treatment

  • 100% sterilization with high temperature : Naturally getting “ZERO” Virus water !

  • Available for small size/integrated and fixed type/transportable type : Can be installed in any location ( suitable size within 20 feet standard high cubic container)

  • No Need for Periodic Parts Replacement

  • No Chemicals Dosing

  • Automated Operation : No need for special operator

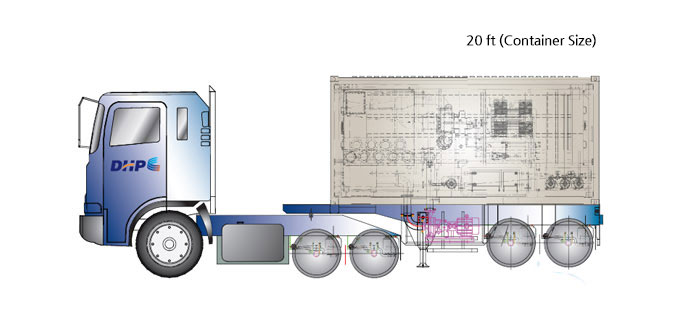

Mobile Type

Malignant Waste Water Treatment System

Malignant Waste Water Treatment System

High efficiency high speed Turbo MVR system converting waste water into clean renewable water & volume reduction

  • Effective for all types of non-volatile malignant waste water -> Multipurpose

  • Absolutely no periodic replacement of parts -> Reduces operating cost

  • Absolutely no use of chemicals -> Reduces operating cost

  • No need for sterilization -> 100% sterilization with high temperature -> Reduces operating cost

  • No special need for pre/post treatment system -> Takes the smallest installation space

  • Can be installed anywhere -> Cope with small demand

  • System reduced in size -> Transportable package (20 feet standard container size)

Sample for malignant waste water treatment

Treatment Place Plating factory in Ansan city, Korea
Influx waste water specification Volume 90 (ton/day), TDS 16,300 (ppm)
Efflux condensate clean water Volume 80 (ton/day), TDS 48 (ppm)
Efflux concentrated waste water Volume 10 (ton/day), TDS 147,000 (ppm)
Total volume reduction ratio 1/10
Treatment price per condensate water ton below 5,000 (korean won/ton) [= 4 US$/ton ]
